Fixed installation method:
1. Feet must be horizontal fixed installation
2. The lever in traction hole must be one of pull rod;
3. The choice of electronic scale effective stroke must be greater than the oil cylinder stroke more than 10 mm effectively. The buffer area before and after the installation must be larger than 5mm.
4. Carbon film circuit board face when installation must stand sideways or down (to avoid pollution of dust or carbon powder fell on the carbon film on the working plane).
KTC1 series
KTF series

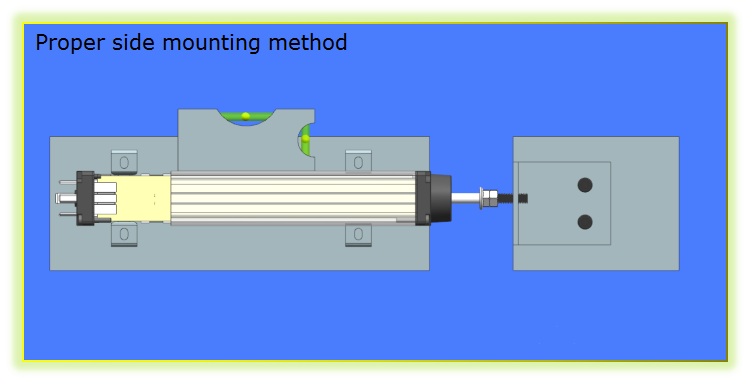

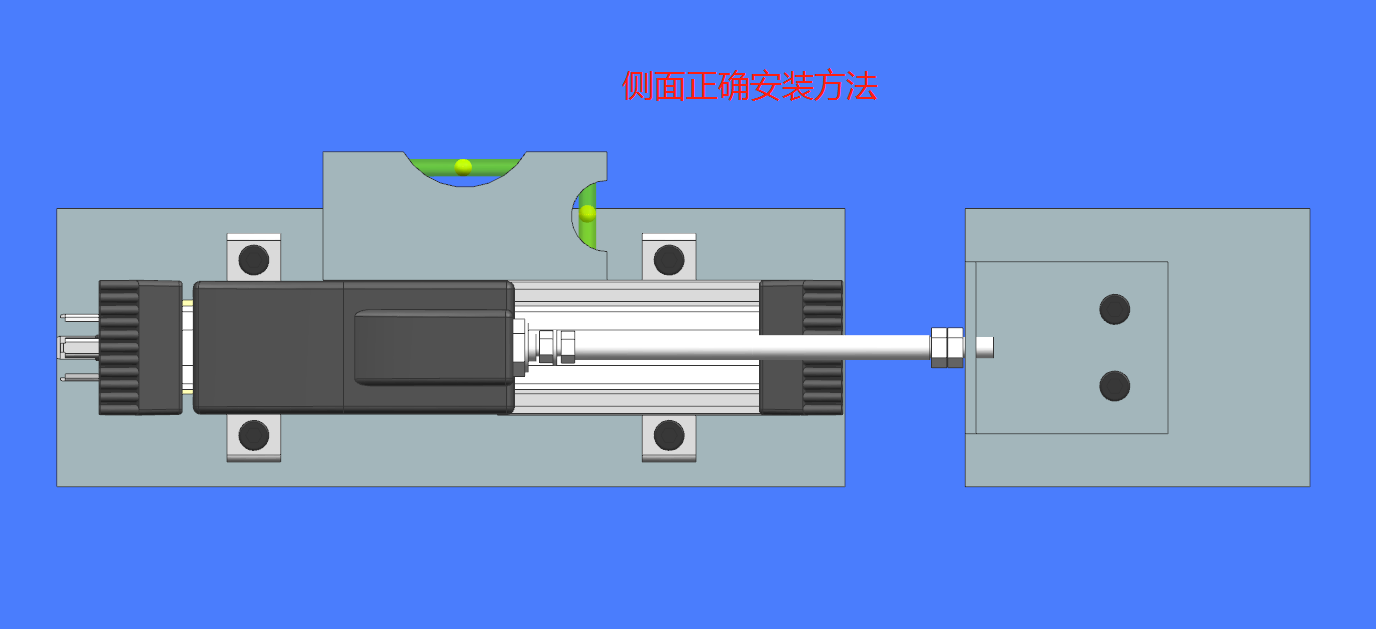

Proper side mounting method

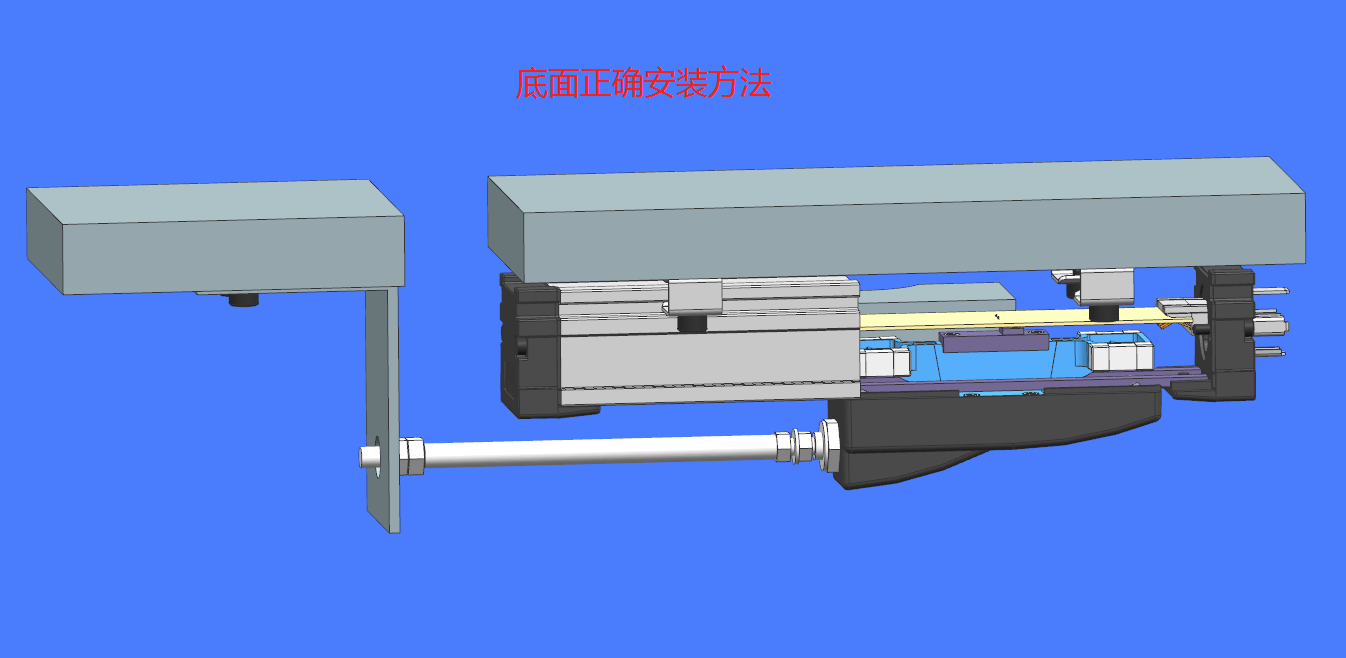

Correct installation method of the bottom surface

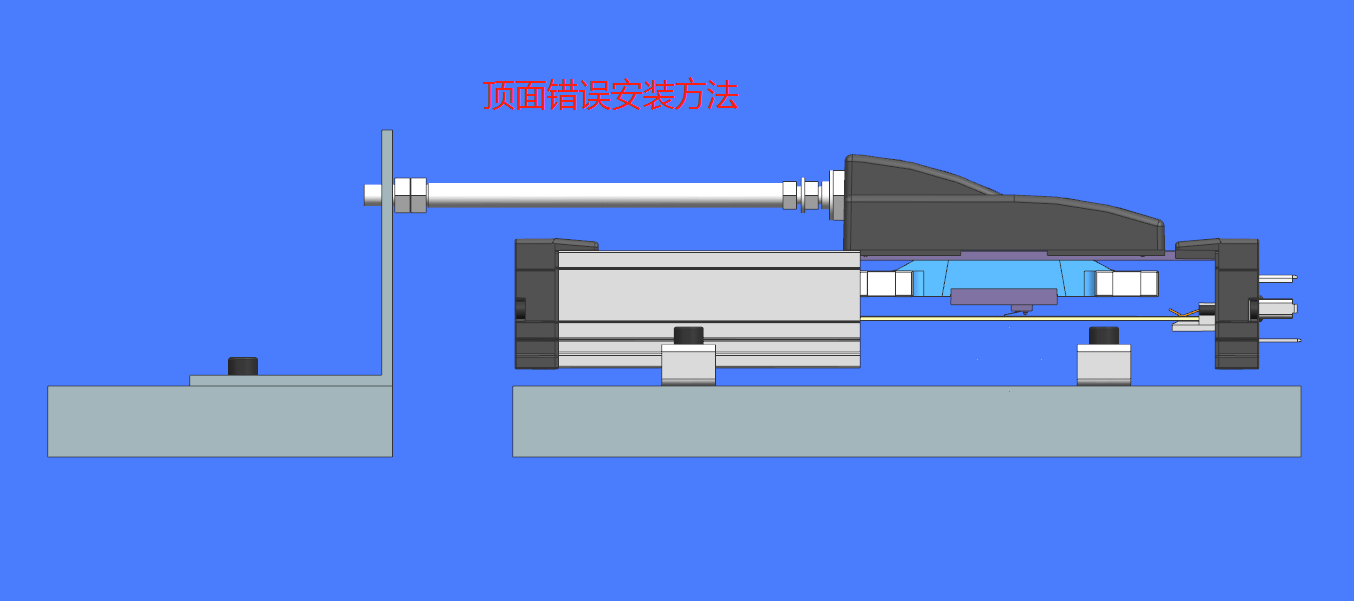

Top surface incorrect installation method
