Product Summary:
The GTM series of micro Hall magnetic induction self-resetting displacement sensors is a non-contact Hall magnetic induction sensor. It consists of two parts: an induction magnetic cylinder and a single-chip microcomputer chip processing circuit. The internal magnetic cylinder extends and retracts back and forth, and the Hall magnetic induction programming chip in the circuit generates magnetic induction. Different analog or digital signals are output through the internal processing circuit. The magnitude value of the output signal is in a direct proportional linear relationship with the actual displacement distance.
- Product Overview
- Technical Parameters
- Size selection
I. Overview of GTM Series Magnetic Induction Self-Resetting Displacement Sensors:
The GTM series of micro Hall magnetic induction self-resetting displacement sensors is a non-contact Hall magnetic induction sensor. It consists of two parts: an induction magnetic cylinder and a single-chip microcomputer chip processing circuit. The internal magnetic cylinder extends and retracts back and forth, and the Hall magnetic induction programming chip in the circuit generates magnetic induction. Different analog or digital signals are output through the internal processing circuit. The magnitude value of the output signal is in a direct proportional linear relationship with the actual displacement distance.
II. Application Fields of GTM Series Magnetic Induction Self-Resetting Displacement Sensors:
● Shaft diameter runout detection ● Textile machinery detection
● Vehicle brake device wear measurement ● Robot, precision displacement measurement
● Online inspection of automotive parts ● Positioning of machine tools and tools, positioning of hydraulic cylinders
● Bridge deck displacement detection ● Protection of metro tunnel engineering
III. Features of GTM Series Magnetic Induction Self-Resetting Displacement Sensors:
The compact design makes it convenient for customers to install in narrow Spaces.
★ Enclosed shell, internal potting, with a protection level as high as IP68.
The scale body is made of custom-made stainless steel, which is anti-corrosive and oil-resistant, and is suitable for relatively complex working conditions.
IV. Technical Parameters and Wiring Methods:
Measuring range | 2.5mm | 5mm | 10mm | 15mm | 20mm |
Resolution | 0.001 | 0.001 | 0.002 | 0.003 | 0.005 |
· Independent Linearity | 0.005 | 0.008 | 0.01 | 0.02 | 0.03 |
Repeatability | 0.001 | 0.001 | 0.005 | 0.005 | 0.01 |
Supply voltage | DC12-24V | ||||
Output signal | 0-5V、0-10V、4-20mA、RS485 | ||||
Drive mode | Built-in spring self-reset type | ||||
Operating temperatur | -35℃~+65℃ | ||||
· Protection grade | IP68 | ||||
· Carrier-pilot relaying | Standard 1M shielded wire tail direct outlet (optional: tail side outlet) | ||||
Wiring definition
Analog /Digital | Current type | Voltage type | RS485 |
Brown/red | DC12-24V | DC12-24V | DC12-24V |
Blue/Black | 0V | 0V | 0V |
Yellow/Green | 4-20mA output | 0-5V output /0-10V output | RS485 A+ |
White | None | None | RS485 B- |
Shielded wire | Earthing GND | Earthing GND | Earthing GND |

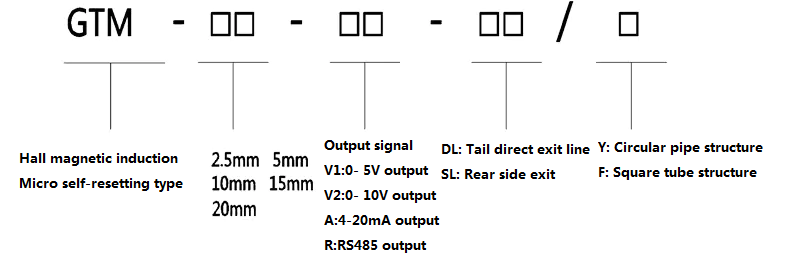

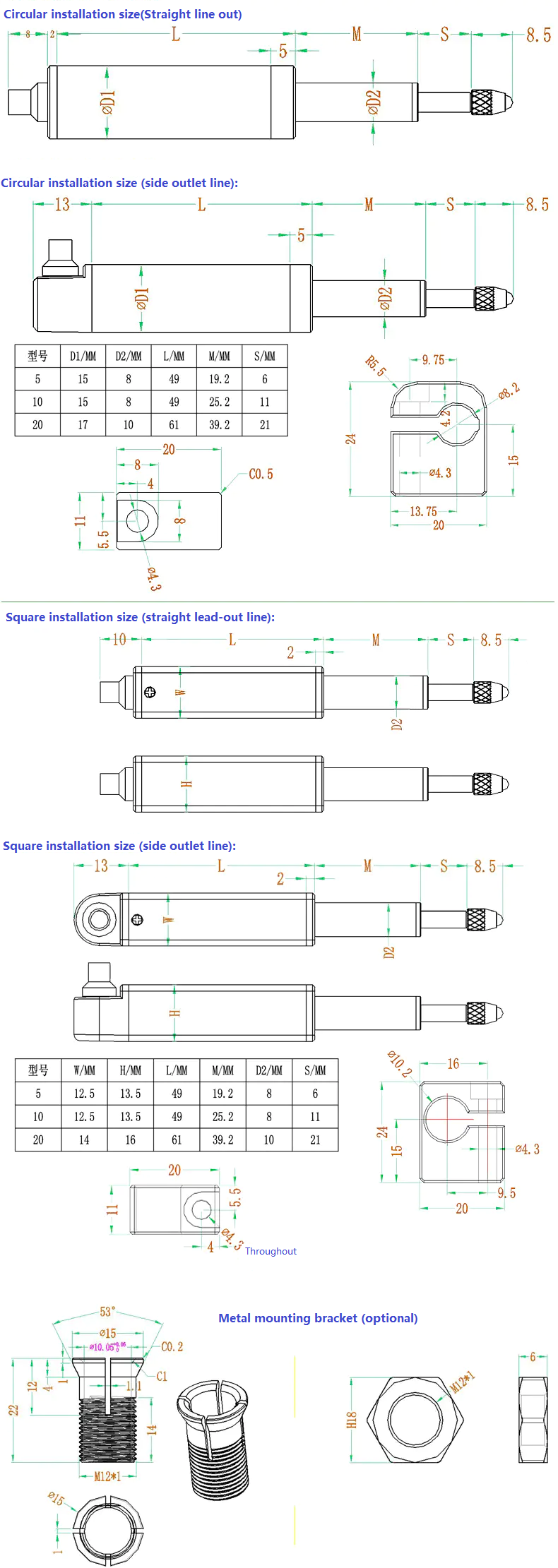

VI. Installation Dimension
