Tilt Angle Sensor

←

→

Product Name:Tilt Angle Sensor Type E size L65*W58*H30mm
Product Summary:

High-precision digital output inclination sensor, a high-precision single-axis inclination sensor launched by Milang Technology Company, the resolution can reach 0.01°, high-precision digital output inclination sensor, precision inclination meter internal use of high-resolution differential digital-to-analog converter, built-in automatic temperature compensation and filtering algorithm, reduce the error caused by environmental changes. The measuring principle is to convert the change of static gravity field into the change of inclination Angle, directly output the current attitude Angle through digital or analog mode, high-precision digital output inclination sensor, precision inclination meter shell using zinc alloy die-casting molding, high mechanical strength, low temperature expansion coefficient, high sealing performance, Easy to install, simple to use, small size, anti-external electromagnetic interference, strong ability to withstand vibration and shock, is the recommended choice of surveying and mapping, high-rise buildings, highway Bridges, industrial automation, construction machinery and other industries inclination measurement!

Download:

Global Online Advisory

Product Overview
Technical Parameters
Size selection

Product introduction

1. Overview of tilt sensor:

MQJD series is a high-precision uniaxial and biaxial inclination sensor launched by Miran Technology company, the resolution can reach 0.01°, the sensor adopts a high-resolution differential digital-to-analog converter, the product uses a high-precision 3D-MEMS measurement chip, built-in automatic temperature compensation and filtering algorithm to reduce the error caused by environmental changes. In order to make the product have excellent performance in high and low temperature environment, the temperature compensation of the product is carried out in the range of -40 ~ +85℃, effectively inhibiting the angular data offset caused by temperature change, and ensuring the accuracy and stability of the measurement data.

The product shell is made of zinc alloy die-casting molding, high mechanical strength, low temperature expansion coefficient, high sealing performance, easy installation, simple use, small size, anti-external electromagnetic interference, strong ability to withstand vibration and impact, is the recommended choice of surveying and mapping, high-rise buildings, highway Bridges, industrial automation, construction machinery and other industries inclination measurement.

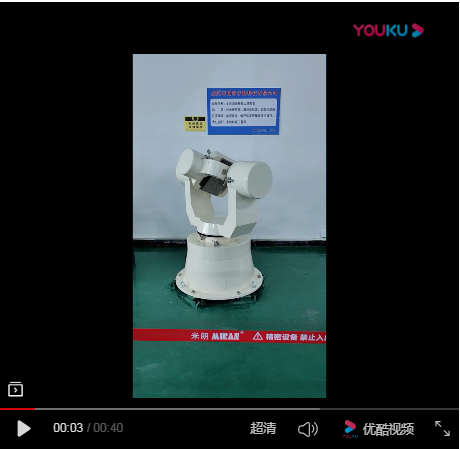

Inclination sensor detection and calibration equipment (automatic high-precision three-axis rotary table) video: (attached at the bottom of the parameters are pictures of three-axis rotary table and two-axis rotary table)

Technical Parameter

Gauging spindle	Single axis	Double axis
Measurement range	±15°，±30°，±60°,±85°	±30°，±60°,±85°
Linearity	0-15° linear accuracy ≤0.01°; 15°-30° linear accuracy ≤0.02°; 30°-85° Linear accuracy ≤0.03°
Resolution	0.01°
Temperature effect on zero	±0.0007°/℃	±0.005°/℃
Working current	18~45mA（24V）	20mA
Output signal	0-5V/0-10V/4-20mA/RS485
Voltage supply	+DC9-36V
Working temperature	-40~85℃
Storage temperature	-55~+100℃
Power on start time	＜1s
Output frequency	5~ 10Hz
Insulation resistance	≥100M ohm
Shock resistance	2000g,0.5 ms,3 time/shaft
Anti-vibration	10grms、10～1000Hz
Protection grade	IP67/IP68
Shell material	Zinc alloy/Stainless stell

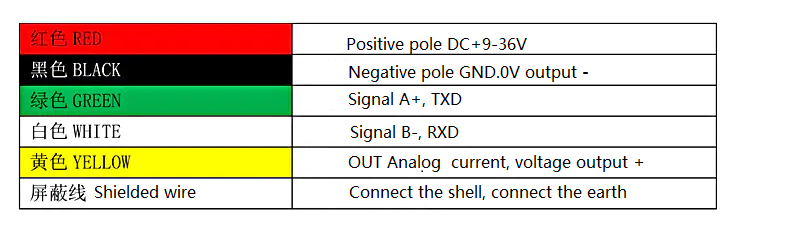

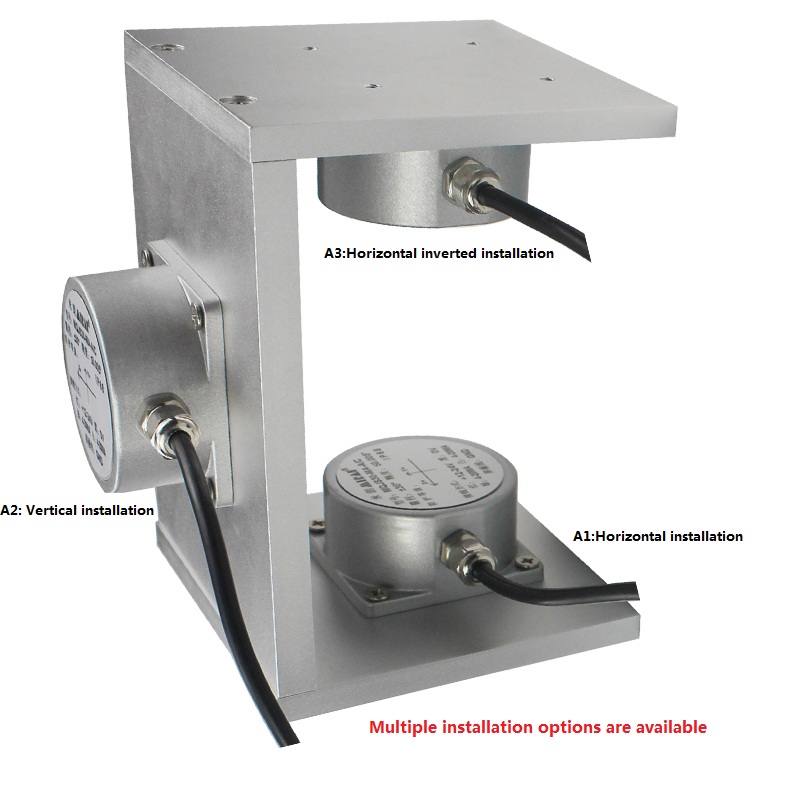

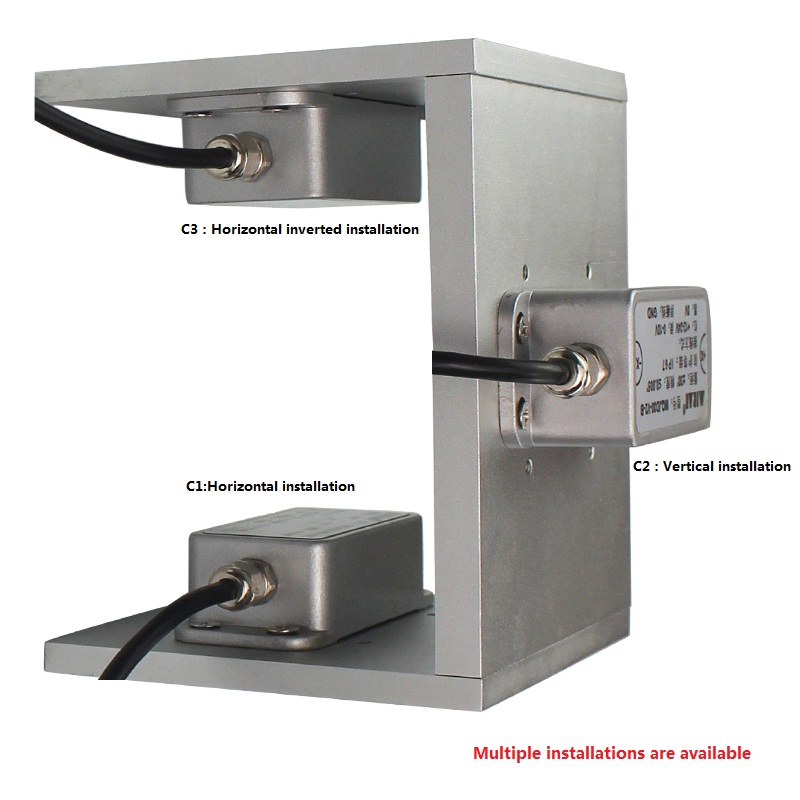

Installation	Four M4 screws

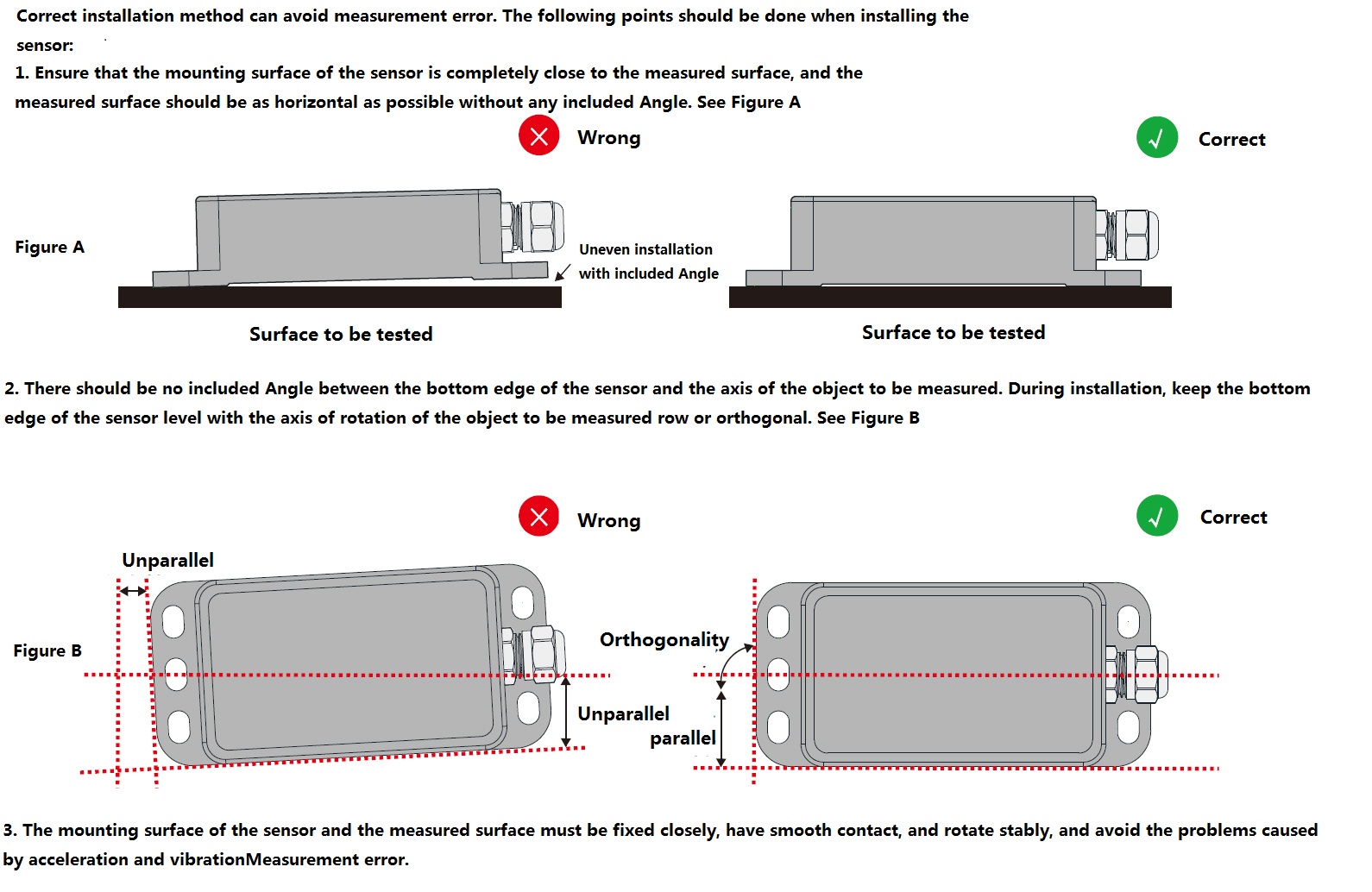

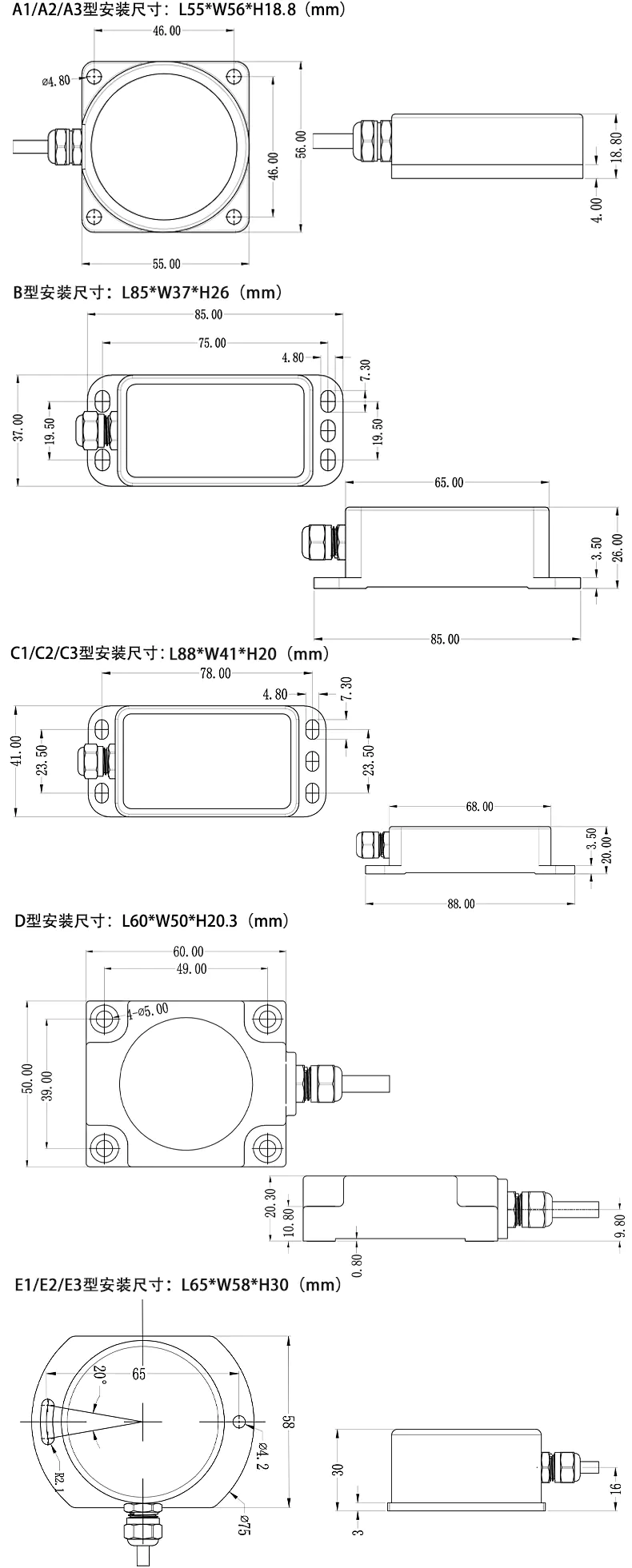

Installation Dimension

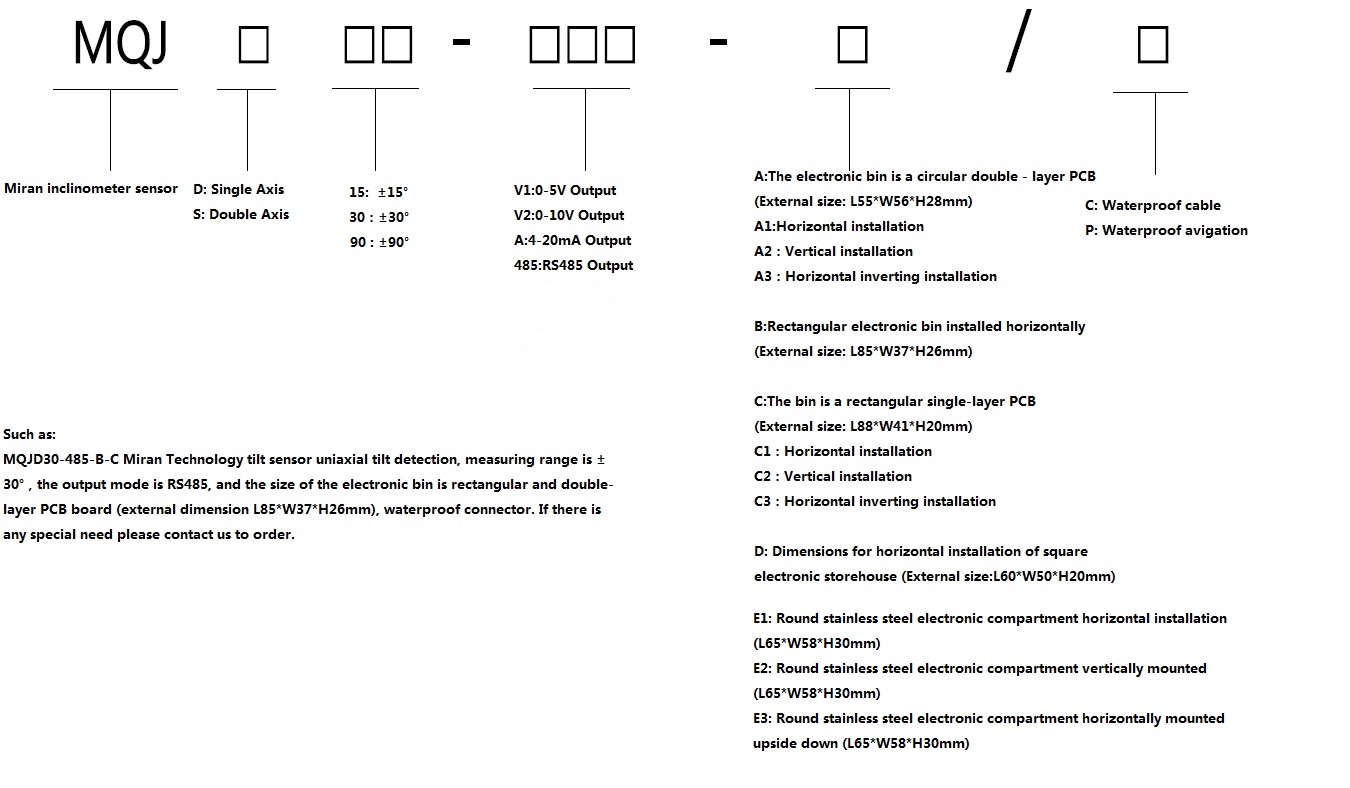

Model Selection:

MQJD series is a high-precision uniaxial and biaxial inclination sensor launched by Miran Technology Company, the resolution can reach 0.001°, the full range linear accuracy is as high as 0.005°, the sensor adopts high-resolution differential digital-to-analog converter, the product uses high-precision 3D-MEMS measurement chip, built-in automatic temperature compensation and filtering algorithm. The error caused by environmental change is greatly reduced. The Angle sensor type E size 65*58*30mm, can be customized non-standard products.

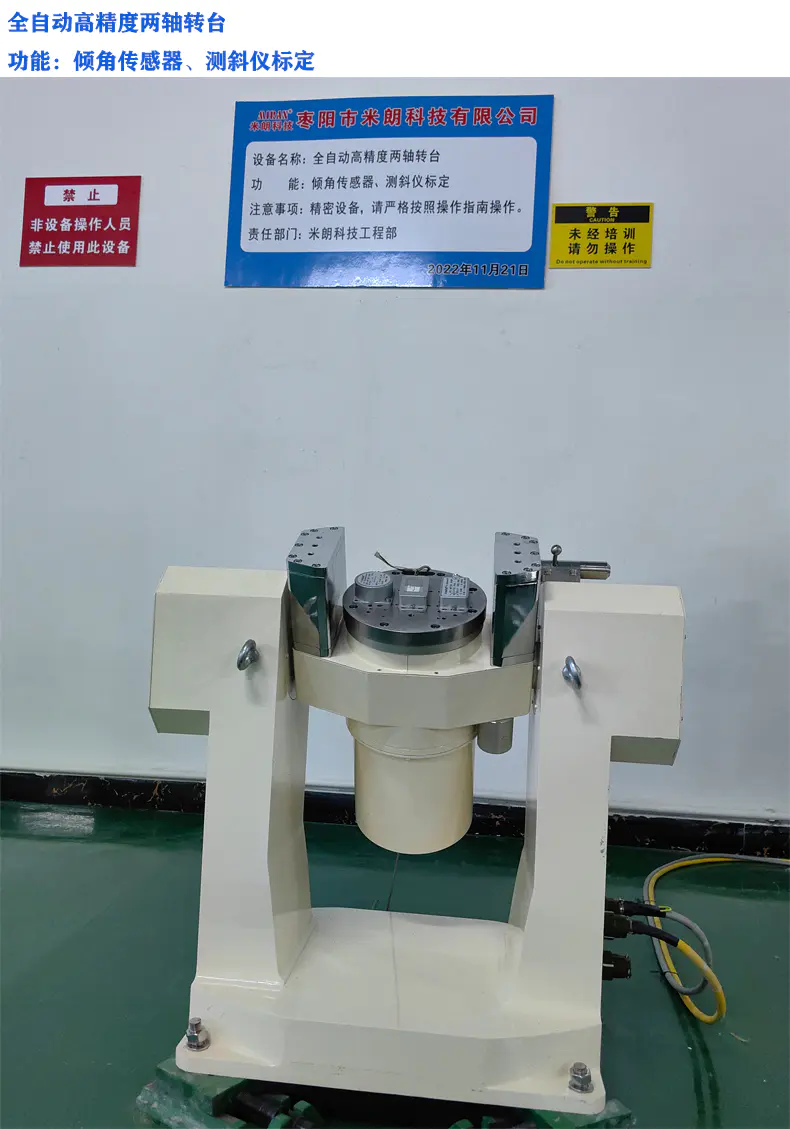

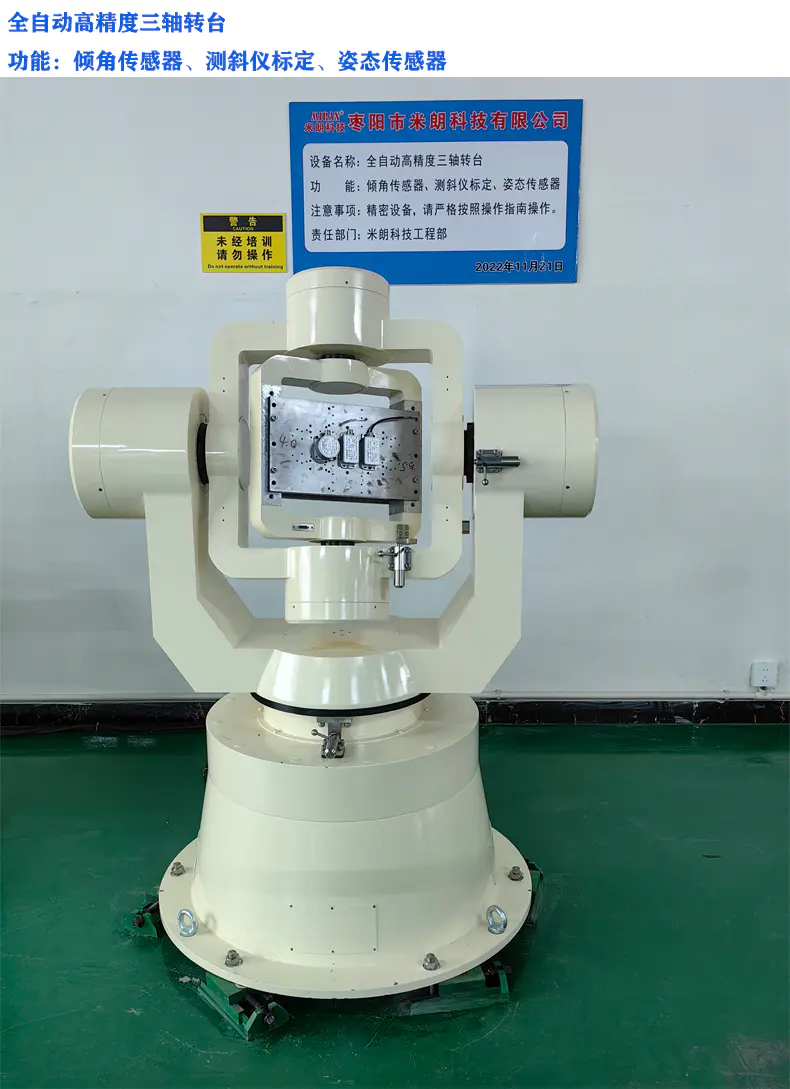

Automatic high-precision three-axis turntable and two-axis turntable Picture:
