Product Summary:
The wireless transmission module W1 of Miran Sensor is a high-performance, low-power, long-distance micro-power RF wireless data transceiver radio. It has internal automatic spread spectrum calculation and leading CRC error correction processing, does not change any data and protocol of the user, and adopts a half-duplex transparent transmission mechanism to realize the function of wireless replacement. The RF chip of the wireless data transmission radio is based on spread spectrum frequency hopping technology, which surpasses the existing GFSK radio in stability, anti-interference ability and receiving sensitivity. Equipped with a low-power high-speed processor, the data processing capability and computing speed are improved. Users can flexibly configure the radio's operating frequency, serial port rate, spread spectrum factor, effective data ratio and spread spectrum bandwidth according to actual needs through the upper computer software configured by our company. The operation is simple and easy to use. The software and hardware of the wireless data transmission radio are all industrial-grade design standards with strong protection measures. It is guaranteed to work stably and reliably under special environments. The radio is designed with a variety of interfaces, including industrial-grade 485, industrial-grade TTL and standard DB9 serial port 232, and DC6~35V wide voltage input. It is a data transmission radio that is completely suitable for industrial applications.
- Product Overview
- Technical Parameters
- Size selection

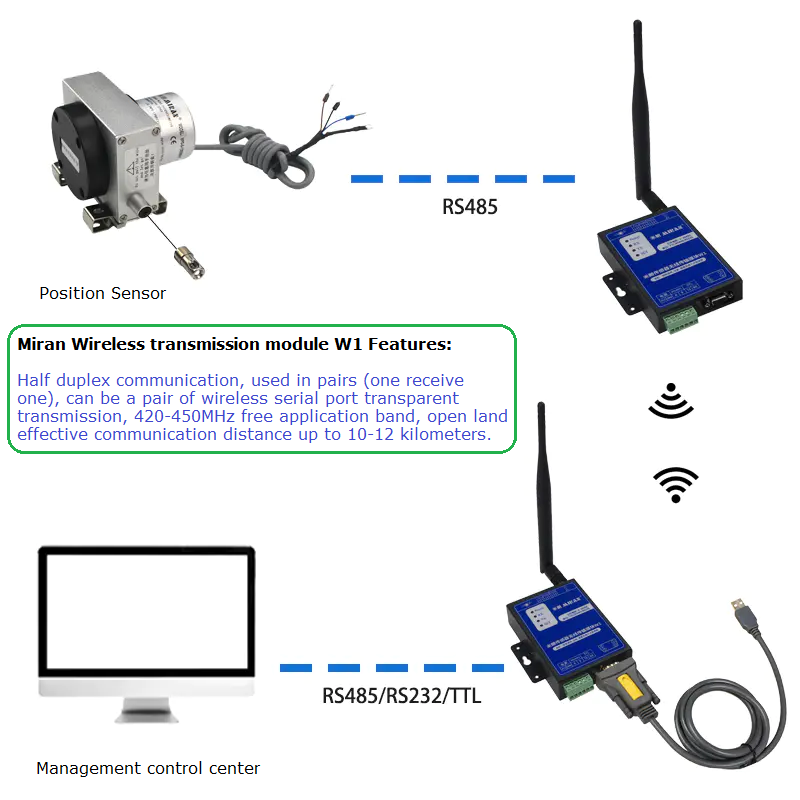

I. Miran sensor wireless transmission module W1/ Wireless data transmission radio overview:
II. Miran sensor wireless transmission module W1/ Wireless data transmission radio features:
1. Based on Sub-G wireless TM spread spectrum modulation technology.
2. Half duplex communication, serial data transparent transmission.
3. 420~450MHz free frequency band, other frequency bands can be customized.
4. Micro power transmission, standard 2W, 7 adjustable.
5. The receiving sensitivity is as high as -138 DBM, the maximum transmission power +33dBm.
6. The use of efficient forward error correction coding technology and frequency hopping mechanism, anti-interference ability is strong, low bit error rate.
7. Support serial port wake up, send and receive data at any time, no cycle wake up time.
8. You can flexibly set radio parameters through software or single-chip computer commands.
9. Built-in watchdog, to ensure long-term reliable and stable operation.
10. The effective communication distance in the open land can reach 10~12 kilometers.
III. Miran sensor wireless transmission module W1/ wireless data transmission radio technical parameters:
Item | Technical parameter |
Modulation system | Sub-G wireless spread spectrum |
Working frequency | 420~450MHz（customizable） |
Transmitted power | 33dBm |
Receive sensitivity | -138dBm |
Series rate | 1200bps～57600bps（default 9600bps） |
Interface check routine | 8E1/8O1/8N1（optional） |
Working voltage | DC6～35V |
Emission current | ≤2A（transmitter power 33dBm） |
Receive current | ≤25mA |
Operating temperature | -40～+85℃ （Engineering grade） |
Operating humidity | 10%～90% Relative humidity,no condensation |
IV. Miran Sensor wireless transmission module W1/ Wireless data transmission radio application fields:
● Smart home, intelligent transportation, sensor network
● Industrial automation, agricultural modernization, intelligent building
● Water, electricity, gas, heating automatic collection system
● Water conservancy, oil field, mine, meteorological and other equipment information collection
● Street lamp control, power grid monitoring, wind and solar complementary systems
● Wireless transmission of industrial equipment data and industrial environmental monitoring
● Everything else requires wireless instead of TTL/RS232/RS485 wired communication
V. Miran sensor wireless transmission module W1/ Wireless data transmission radio installation size:
VI. Interface description:
Miran sensor wireless transmission module W1/ Wireless data radio above interface description.
① : DC power base, mainly power input, for the entire radio power supply, input power range is DC6-35V, the current is not less than 1.5A.
②: serial switch dip switch, mainly used to select and radio communication interface mode, MAX232,MAX485 and TTL, while the SET light also has the corresponding indication. See the logo diagram above the film for detailed configuration.
③ : Antenna interface, this interface is a standard SMA antenna interface, the access antenna is 50 euro impedance.
④ : Power input, MAX485 and TTL output, power input is DC6V~35V,1.5A power supply.
Note: If the DC power supply is used, it cannot be powered from here.
