Angle Displacement Sensor

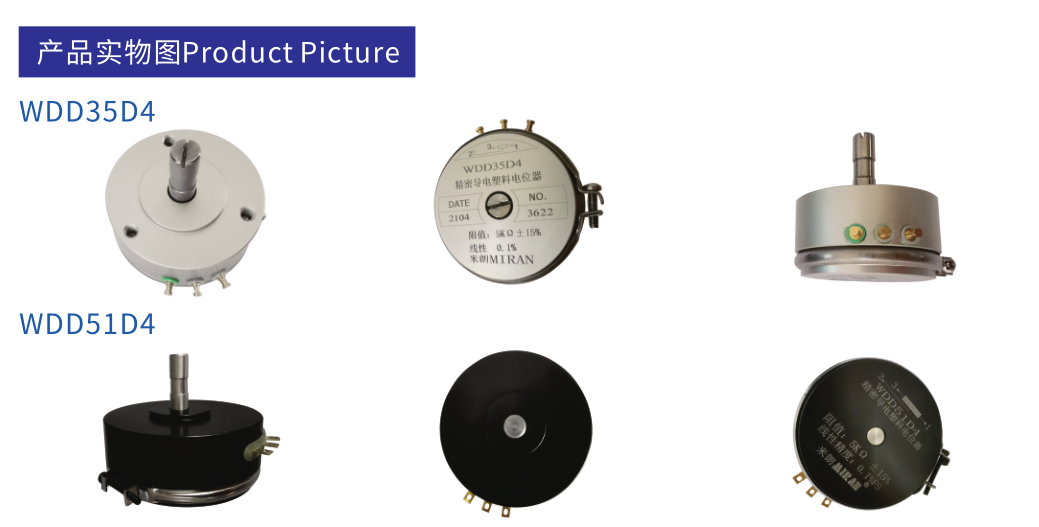

Product Name:WDD35D4 and WDD51D4 Angle Sensor
Product Summary:
Product Summary:
WDD35D4 and WDD51D4 Angle sensor, penetrating shaft body, stepless rotation, high precision and long life. WDD35D4 and WDD51D4 Angle sensor effective travel: 0-355 degrees. WDD35D4 and WDD51D44 Angle sensor other travel can contact us to customize.
Download:
Global Online Advisory
- Product Overview
- Technical Parameters
- Size selection
WDD35D4/WDD51D4 angular displacement sensor housing for anodized aluminum housing and high
temperature plastic cover, resistor material for conductive plastic, stainless steel shaft and stainless steel ball
bearings, slide brush assembly for the precious metal multi-contact sliding brush, electrical connection for the
gold-plated brass terminals.WDD35D4/WDD51D4 angular displacement sensor for the all-metal chassis,
spherical bearings and conductive plastic Commutation freely, WDD35D4/WDD51D4 angle displacement
sensor as a kind of high-precision angle displacement sensor, it is suitable for a variety of analog output
applications, but also can be both digital signal output applications, for example, if it is used at the same time
and the A/D converter with the use of the digital digital absolute encoder constitutes a cost-effective, can be
used for precise positioning, position monitoring and so on. Customized specifications such as special travel
and shaft sizes are available.
