Product Summary:
Hall Angle (magnetic induction) displacement sensor adopts magnetoelectric principle (internal non-contact type) to measure the Angle, with no contact, long life, high resolution, high frequency response, low temperature drift, excellent linear, waterproof, dustproof, vibration resistance, anti-impact, anti-interference and other characteristics. Widely used in water, oil, gas, vibration, impact and other harsh industrial environment. Characteristics of Hall Angle (magnetic induction) displacement sensor: no contact, no noise, high sensitivity, high repeatability, long life, high frequency response characteristics; Strong environmental applicability, can be used in water, oil, steam, dust, high and low temperature, vibration impact and other harsh industrial use environment; Position measurement, is an ideal product to replace optical encoder, rotary transformer, conductive plastic potentiometer; Any Angle within 360 degrees can be customized, such as 90 degrees, 180 degrees, 200 degrees can be produced; Power supply voltage +DC24V, output signals are 0 ~ 5V, 0 ~ 10V, 4 ~ 20MA,etc.
- Product Overview
- Technical Parameters
- Size selection
Hall Angle (magnetic induction split-type) displacement sensor Overview:
Milang technology WOA-B series Hall Angle sensor, Hall Angle (magnetic induction split type) displacement sensor adopts magnetoelectric principle (internal non-contact type) to measure the Angle, with non-contact, long life, high resolution, high frequency, low temperature drift, excellent linear, waterproof, dustproof, vibration resistance, anti-impact, anti-interference and other characteristics. Widely used in water, oil, gas, vibration, impact and other harsh industrial environment.
Hall Angle (magnetic induction split-type) displacement sensor Features:
1. No contact, no noise, high sensitivity, high repeatability, long life, good high-frequency response characteristics;
2. Strong environmental applicability, can be used in water, oil, steam, dust, high and low temperature, vibration impact and other harsh industrial use environment;
3. Position measurement, is an ideal product to replace optical encoder, rotary transformer, conductive plastic potentiometer;
4.The Angle within 360 degrees can be customized, such as 90 degrees, 180 degrees, 200 degrees can be produced;
5. Power supply voltage +DC24V, output signals are 0 ~ 5V, 0 ~ 10V, 4 ~ 20MA, etc.
Performance parameter
Model | WOA-B/WOA-C |
Angle Measuring range | 0～355°(Customizable） |
Independent Linearity | ±0.1%FS |
Output Signal | (Power supply +DC 12～24V) 0～10V,4～20mA |
(Power supply +DC 5V) 0～5V | |
Repeatability | 0.01 |
Temperature drift | 9ppm/℃ |
Working Temperature | -40～+85℃ |
Maximum Speed | 3000rpm |
Protection Grade | IP68 |
Product dimensions

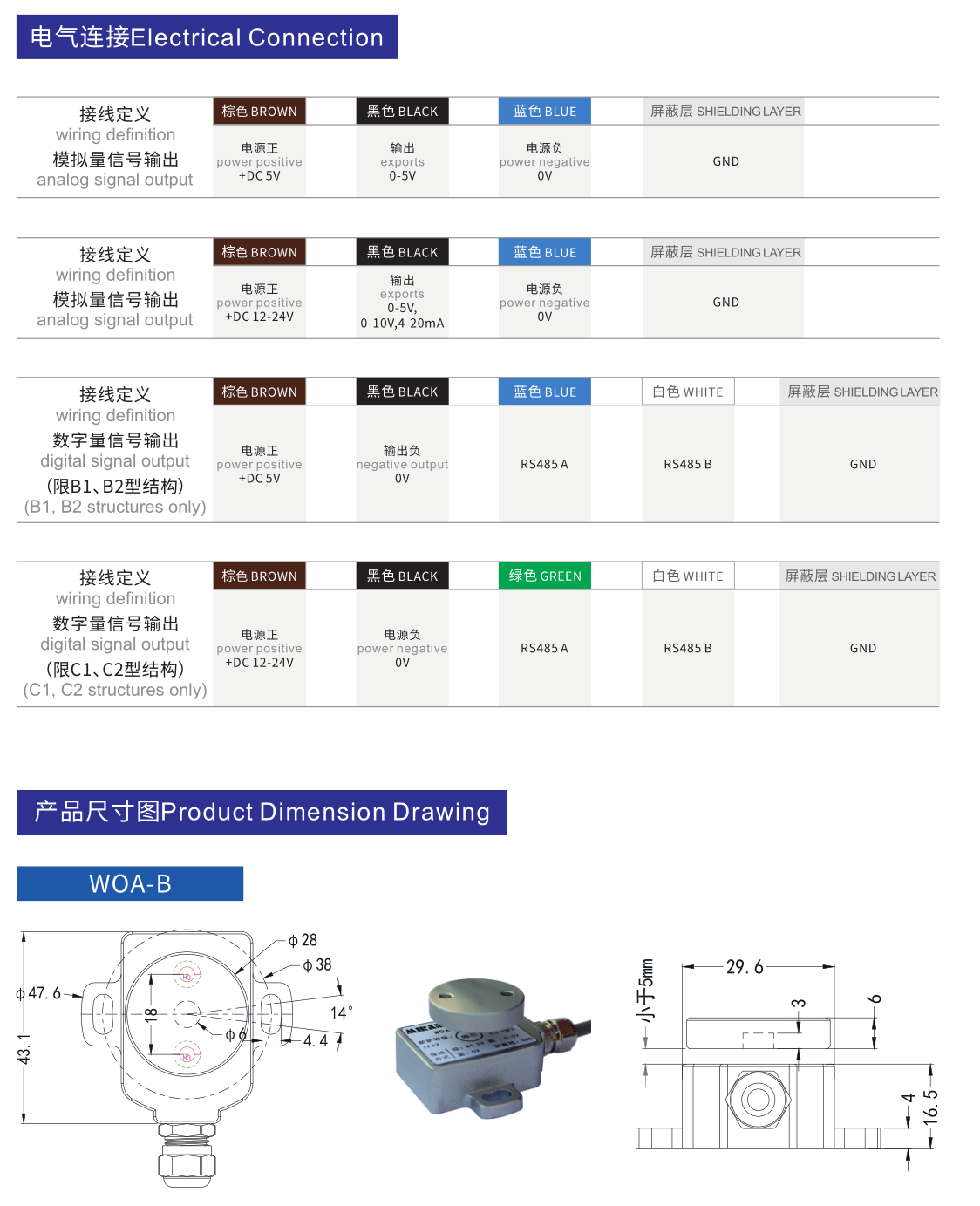

Mode of connection（WOA-B/WOA-C）
Brown：Positive pole +DC 5V or 12 ～24V
Black ：Output 0～5V,0～10V,4～20MA
Blue ：Negative pole 0V
Shielded line：GND
