Product Summary:
KSP circular tube miniature self-reset displacement sensor (alias: electronic ruler, resistance ruler, potentiometer, displacement sensor) Principle: Potentiometer principle, all sensors are position measurement type, used in the adjustment system (control system) and measurement system, to directly measure the displacement and length, output DC voltage signal, can also be converted into the standard 0-5V, 0-10V or 4-20mA DC signal through the built-in or external V/A converter module. Can also be remote transmission control requirements. KSP circular tube miniature self-reset displacement sensor (alias: electronic ruler, resistance ruler, potentiometer, displacement sensor) output displacement change: 0-100% given input operating voltage (with displacement changes).
- Product Overview
- Technical Parameters

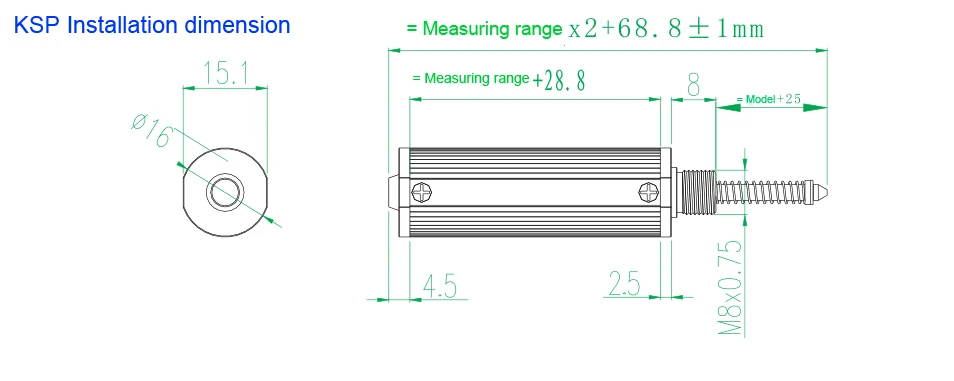

- Size selection
Attention:The stroke is from 5mm-100mm. If you need different lengths of travel, please contact with the supplier. The default output: 0-100% of the power supply voltage value, which is resistance out put, if you need other signal output, such as 4-20mA, 0-5V, 0-10V,and RS485 signal output please purchase the transmission module in the shop or contact with the supplier...
Technical Parameter
KSP with spring | 5mm | 10mm | 15mm | 20mm | 25mm | Stroke Length Stroke exceed 30mm resistance is 5KΩ |
Linear Precision (±%FS) | ±0.1% | |||||
Resistance (±10%) | 2ΚΩ | |||||
Effective Stroke | range+3mm | |||||
Resolution | Infinite | |||||
Repeatability Precision | 0.01mm | |||||
Temperature Coefficient | ≤1.5ppm/℃ | |||||
Recommended Current | ≤1mA | |||||
Input Voltage | (4ΚΩ~5ΚΩ):≤24VDC; (2ΚΩ~3ΚΩ):≤12VDC; (1ΚΩ):≤5VDC | |||||
Output | 0~100% × input voltage (change with the movement of the rod) | |||||
Sensitivity | 1 | |||||
Temperature Drift | infinitesimal | |||||
Load Characteristic | ≥10mA | |||||
Very long life | >100*1000000 cycles,>2*1000000 m | |||||
Ingress Protection:IP65; Max Speed:≤5m/s; | ||||||
Return Speed:≤1m/s; Working Life:10×1000000 cycles or 2×1000000m |
KSP circular tube miniature self-reset displacement sensor Output type:
Resistance output type: 2kΩ, 5kΩ
Voltage output type (external module) : 0-5V, 0-10V
Current output type (external module) : 4-20MA (two-wire system, three-wire system)
Digital signal (external module) : RS485
KSP circular tube miniature self-reset displacement sensor application range:
KSP circular tube miniature self-reset displacement sensor is widely used in micro control system. Such as: servo control valve position detection and control, medical equipment, leather machinery, die closing control, IT equipment, paper machinery, textile machinery, ship steering system, and other displacement detection occasions. All sensors have obtained CE certification from authoritative institutions.
